The DASCOM DC-2300 is a direct thermal card printer especially designed for front-desk applications. With a compact design this printer doesn't use much space on your desk but delivers fast and crisp results. With a resolution of up to 300 x 1.200 dpi fine details are visible and with a print speed of up to 180 cards/hour in colour even large print jobs can be done in a short time.

Thanks to Edge-to-Edge printing, the DC-2300 is the perfect partner for employee ID, membership or loyality cards. Easy exchangeable ribbons and an OLED display on the front informing about the actual status makes the daily work simple.
Highlights at a glance
  • High resolution printing up to 300 x 1200 dpi
  • Fast print speed for up to 180 cards/hour
  • Edge-to-Edge printing
  • High capacity card feeder
  • Internal space for encoders


Models

  • DC-2300 Single Side model
  • DC-2300 Dual Side model
Card Printer DC-2300

Card Printer DC-2300

Resolution 300 x 1.200 dpi
Technology Direct thermal
Print speed Single Side:
180 cards/hour (YMCKO)
Dual Side:
135 cards/hour (YMCKOK)
Interfaces 1x USB
1x Ethernet
Card format ISO ID-1/CR-80
Card thickness 0,25 - 1,27 mm
Models, options and consumables
Model overview
  • DC-2300 Single Side (Part-No. 28.883.6181)
  • DC-2300 Dual Side (Part-No. 28.883.6180)


Consumables

  • Ribbon YMCKO (500 Images) (Part.-No. 75046 006)
  • Ribbon ½YMC KO (600 Images) (Part.-No. 75046 009)

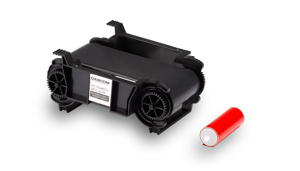

  • Ribbon K (2.000 Images) (Part.-No. 75046 012)
  • Ribbon K eco (2.000 Images) (Part.-No. 75046 103)
  • Ribbon K Paper (2.000 Images) (Part.-No. 75046 106)

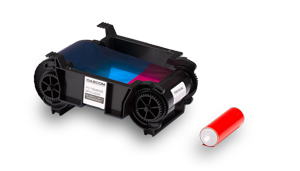

  • Ribbon YMCKOK (400 Images) (Part.-No. 75046 015)
  • Ribbon YMCKOO (400 Images) (Part.-No. 75046 018)

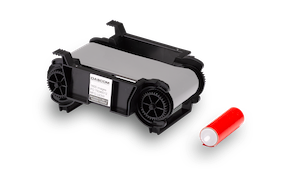

  • Ribbon White Special (2.000 Images) (Part.-No. 043 166)
